Features:

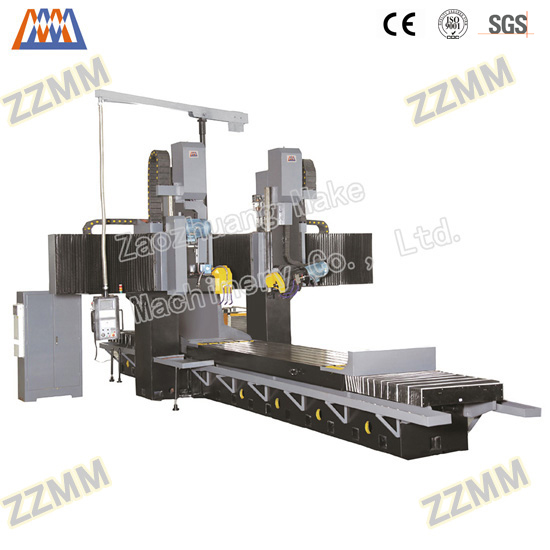

1.Composed of PLC,hydraulic transmission system,servo motor-reducer-ball screw drive system,box shape frame,etc.
2.Horizontal grinding head is mainly for grinding level plane(Grinding incline 90°of V type guideway is possible),vertical grinding head is for side plane(Electrical angle adjustment&hydraulic locking,grinding incline of V type guideway&swallow-tail slot at any angle is possible).
3.Gantry structure and close,strong&box structure composed of double column,beam&bed.Rectangular staged guideway with good mechanical property&high rigidity.
4.State-patented spindle for horizontal grinding head and roller bearings for vertical grinding head.
5.Stepless&stable table motion with low noise,independent hydraulic station with cooling unit.Long-range-control&stepless table moving speed with inching&auto function.
6.It is with auto lubrication and it stops&alarms automatically if oil not enough.
|
Specifications |
MK1630 |
MK1640 |
MK2040 |
MK2060 |
MK2080 |
MK2440 |
MK2460 |
MK2480 |
MK2860 |
MK2880 |
|
Max.Grinding width/length mm |
1600/3000 |
1600/4000 |
2000/4000 |
2000/6000 |
2000/8000 |
2400/4000 |
2400/6000 |
2400/8000 |
2800/6000 |
2800/8000 |
|
Max.grinding height(H./V.)mm |
800/750 |
800/750 |
1200/1050 |
1200/1050 |
1200/1050 |
1200/1050 |
1200/1050 |
1200/1050 |
1500/1200 |
1500/1200 |
|
Max.work-piece height mm |
800 |
800 |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
1500 |
1500 |
|
Max.work-piece weight kg |
5000 |
6000 |
8000 |
10000 |
12000 |
10000 |
14000 |
18000 |
25000 |
30000 |
|
Distance between columns mm |
1700 |
1700 |
2100 |
2100 |
2100 |
2500 |
2500 |
2500 |
3000 |
3000 |
|
Table width/length mm |
1250/3000 |
1250/4000 |
1600/4000 |
1600/6000 |
1600/8000 |
2000/4000 |
2000/6000 |
2000/8000 |
2500/6000 |
2500/8000 |
|
T-slot quantity/width |
7/28 mm |
7/28 mm |
9/28 mm |
9/28 mm |
9/28 mm |
9/28mm |
9/28mm |
9/28mm |
11/28mm |
11/28mm |
|
Max.table travel mm |
3200 |
4200 |
4200 |
6200 |
8200 |
4200 |
6200 |
8200 |
6200 |
8200 |
|
Table moving speed m/min |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
5-18 |
|
Spindle speed(H./V.)rpm |
1300/1450 |
1300/1450 |
1300/1450 |
1300/1450 |
1300/1450 |
1300/1450 |
1300/1450 |
1300/1450 |
868/970 |
868/970 |
|
Sand-wheel size(H/V,O./W./I.)mm |
φ500/75/φ203 |
φ500/75/φ203 |
φ500/75/φ203 |
φ500/75/φ203 |
φ500/75/φ203 |
Φ500/75/203 |
Φ500/75/203 |
Φ500/75/203 |
Φ600/100/203 |
Φ600/100/203 |
|
φ405/62/φ127 |
φ405/62/φ127 |
φ405/62/φ127 |
φ405/62/φ127 |
φ405/62/φ127 |
Φ405/62/φ127 |
Φ405/62/φ127 |
Φ405/62/φ127 |
Φ500/75/φ203 |
Φ500/75/φ203 |
|
|
Main Motor power(H./V.)Kw |
11/7.5 |
11/7.5 |
11/7.5 |
11/7.5 |
11/7.5 |
11/7.5 |
11/7.5 |
11/7.5 |
22/11 |
22/11 |
|
Dimensions(L./W./H.)mm |
12000/6000/6000 |
16000/6000/6000 |
16000/6500/6500 |
21000/6500/6500 |
25000/6500/6500 |
16000/7200/6500 |
21000/7200/6500 |
25000/7200/6500 |
21000/9000/6600 |
25000/9000/6600 |
